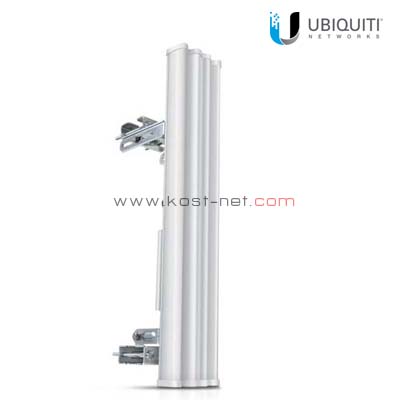

Ubiquiti AM5G19-120

Ubiquity AirMax Sectoral 19Bi 120° 5Ghz (2X2 MIMO Antenna)
UBNT AirMax Sector 5G-19-150: 5 GHz 2×2 MIMO Basestation Antenna, direkomendasikan untuk Ubiquiti platform access point RocketM5

Categories: ,

Product Description

Technical Specification
  • Frequency Range: 5GHz
  • Gain: 18.6-19.1 dBi
  • Polarisation: Dual Linear
  • Cross-Pol Isolation: 28dB min
  • Max VSWR: 1.5:1
  • Hpol Beamwidth (-6dB): 123 deg.
  • Vpol Beamwidth (-6db): 123 deg.
  • Elevation Beamwidth: 4 deg.
  • Electrical Downtilt: 4 deg.
  • ETSI Specification: EN 302 326 DN2
  • Dimensions: 700 x 145 x 79mm
  • Weight: 5.9Kg
  • Windloading: 19 lbf @ 100 mph
  • Wind survival: 125mph

Additional Information

Weight 5000 kg
