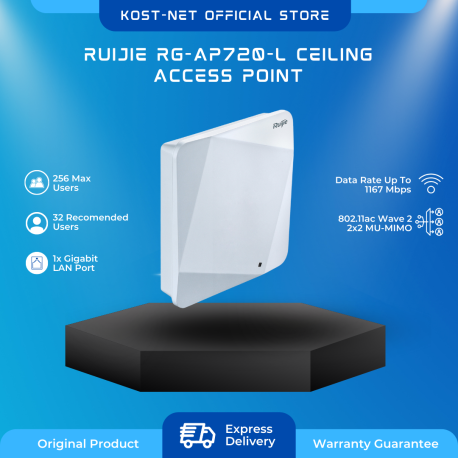

Ruijie RG-RAP720L

Product Description

Ruijie RG-AP720-I adalah salah satu access point yang sangat berkualitas dengan berbagai keuntungan yang bisa Anda dapatkan. Ruijie memang tidak pernah mengecewakan untuk Anda yang mencari access point dengan harga yang terjangkau untuk kebutuhan perusahaan Anda yang menjadikan akses internet Anda menjadi lebih cepat dengan jangkauan yang lebih luas.

Deskripsi singkat Produk Ruijie RG-AP720

Ruijie AP720-I memberikan kinerja nirkabel 802.11ac gigabit tercepat dan pengalaman pengguna yang tak terkalahkan untuk organisasi mana pun.

Dengan kinerja nirkabel maksimum 1,267Gbps, Ruijie AP720-I adalah solusi sempurna dalam penyebaran WiFi apapun dari berbagai klien dengan beragam kebutuhan.

Fitur terdepan pasar yang inovatif, Pre-AX, Correcting & Air Reorder secara drastis meningkatkan efisiensi RF dalam penyebaran WiFi dengan kepadatan tinggi.

Spesifikasi

Untuk spesifikasi dari Ruijie RG-AP720-I adalah seperti berikut:

Model		RG-AP740-I	RG-AP740-I(C)	RG-AP720-I
Model		RG-AP740-I	RG-AP740-I(C)	RG-AP720-I
Target Deployments		For campuses, offices, hospitals, and hotspots of service providers
Basic Specifications	Radio	Concurrent tri-radio dual-band	Concurrent dual-radio dual-band	Concurrent dual-radio dual-band
	Protocol	802.11a/b/g/n/acWave 2
	Operating Bands	802.11b/g/n: 2.4GHz to 2.483GHz
		802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz (vary depending on countries)
	Antenna	Built-in “X-Sense 4” Smart Antenna4×4 MU-MIMO	Built-in Smart Antenna4×4 MU-MIMO	Built-in Smart Antenna2×2 MU-MIMO
	Max Throughput	1733Mbps/800Mbps/433Mbps per radio2966Mbps per AP	1733Mbps/800Mbps per radio2533Mbps per AP	400Mbps@2.4GHz867Mbps@5GHz 1267Mbps per AP
	Spatial Streams	4	4	2
	Modulation	OFDM: BPSK@6/9MbpsQPSK@12/18Mbps 16-QAM@24Mbps 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps DQPSK@2Mbps CCK@5.5/11Mbps MIMO-OFDM: PSK, QPSK, 16QAM, 64QAM and 256QAM	OFDM: BPSK@6/9MbpsQPSK@12/18Mbps 16-QAM@24Mbps 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps DQPSK@2Mbps CCK@5.5/11Mbps MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM	OFDM: BPSK@6/9MbpsQPSK@12/18Mbps 16-QAM@24Mbps 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps DQPSK@2Mbps CCK@5.5/11Mbps MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM
	Receiver Sensitivity	11b：-91dBm(1Mbps)，-88dBm(5Mbps)，-85dBm(11Mbps)
		11a/g：-89dBm（6Mbps），-80dBm（24Mbps），-76dBm（36Mbps），-71dBm（54Mbps）
		11n：-83dBm@MCS0，-65dBm@MCS7，-83dBm@MCS8，-65dBm@MCS15
		11ac HT20：-83dBm（MCS0）, -57dBm（MCS9）
		11ac HT40：-79dBm（MCS0）, -57dBm（MCS9）
		11ac HT80：-76dBm（MCS0）, -51dBm（MCS9）
	Maximum Transmit Power	100mw
	Adjustable Power	1dBm
	IP Rating	IP41
Ports	Service Port	2 10/100/1000BASE-T Ethernet uplink ports (Both ports support PoE) 1 USB port	2 10/100/1000BASE-T Ethernet uplink ports (Both ports support PoE) 1 USB port	2 10/100/1000BASE-T Ethernet ports (LAN1 port supports PoE & Uplink) 1 USB port
	Management Port	1 console port
Power	Power Supply	Local power supply (DC 48V) and PoE+ (802.3af/802.3at)Support dual PoE for power backup (Power adapters sold separately)	Local power supply (DC 48V) andPoE+ (802.3af/802.3at) Support dual 802.3at power supply, or dual 802.3af power supply	Local power supply (DC 48V) and PoE+ (802.3af/at)(Power adapters sold separately)
	Power Consumption	<25.4W	<25.4W	<12.95W
WLAN	Maximum clients per AP	Up to 612	Up to 512	Up to 256
	BSSID capacity	Up to 16 per radio Up to 48 per AP	Up to 16 per radio Up to 32 per AP	Up to 16 per radio Up to 32 per AP
	SSID hiding	Support
	Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID	Support
	Remote Intelligent Perception Technology (RIPT)	Support
	X-speed	Support
	Intelligent load balancing based on the number of users or traffic	Support
	STA control	SSID/radio-based
	Bandwidth control	STA/SSID/AP-based speed control
	Preference for 5GHz (band select)	Support
	Wireless position tracking	Support
	Dynamic Frequency Selection(DFS)	Future Release Support
Security	PSK, Web, and 802.1x authentication	Support
	Data encryption	WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)
	SMS authentication	Support
	PEAP authentication	Support
	Data frame filtering	Whitelist, static/dynamic blacklist
	User isolation	Support
	Rogue AP detection and countermeasure	Support
	Dynamic ACL assignment	Support
	RADIUS	Support
	Wireless Intrusion Detection System(WIDS)	Support
	Wireless Intrusion Prevention System (WIPS)	Support
Bluetooth	iBeacon	Support
Routing	IPv4 address	Static IP address or DHCP reservation
	IPv6 CAPWAP tunnel	Support
	ICMPv6	Support
	IPv6 address	Manual or automatic configuration
	Multicast	Multicast to unicast conversion
Management and Maintenance	Network management	SNMP v1/v2C/v3, Telnet, TFTP, Web management
	One-click Optimization	Support(need to integrate with WIS)
	Fault detection and alarm	Support
	Cloud AC management	Support
	Statistics and logs	Support
	FAT/FIT switching	The AP working in FIT mode can switch to the FAT mode through the RG-WS wireless AC.
		The AP working in FAT mode can switch to the FIT mode through a local console port or Telnet.
External Characteristics	Lock	Support
	LED Indicators	1 LED (red, green, blue, orange, and flashing modes, breathing flashing mode for smart device access, and the indicator can be switched off to silent mode)
Relevant Standard	Wi-Fi Alliance Certification	Support
	Safety Standard	GB4943, EN/IEC 60950-1
	EMC Standard	GB9254, EN301 489EN 55032 , EN 61000, EN 55035
	Health Standard	EN 62311
	Radio Standard	EN300 328, EN301 893
	Vibration Standard	IEC60068 2-31, ETSI EN300 019,NEBS GR-63-CORE
Specifications	Dimensions (W x D x H) (mm)	230 × 230 × 42 (Height of AP only, excluding case and mount kit)	230 × 230 × 42 (Height of AP only, excluding case and mount kit)	180 × 180 × 20(Height of AP only, excluding case and mount kit)
	Weight	1.3kg	1.0kg	0.37kg
Work Environment	Temperature	Operating Temperature: -10°C to 50°C
		Storage Temperature: -40°C to 70°C
	Humidity	Operating Humidity: 5% to 95% (non-condensing)
		Storage Humidity: 5% to 95% (non-condensing)
Installation Mode		Ceiling/wall-mountable
