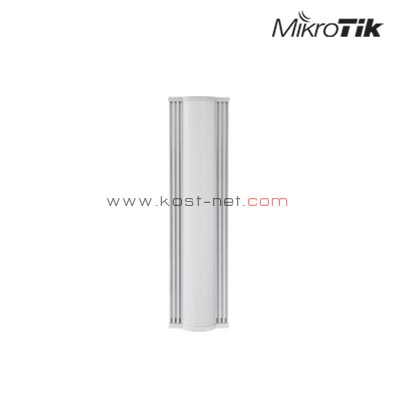

Mikrotik Sector CC 2Ghz-14

Product Description

Spesifikasi Teknis :

• Antenna Connection : 2x RP-SMA on integrated semi-flex pigtails
• Antenna Type : 2.4 GHz 14 dBi
• Enviromental : IP55
• Temperature : -26°C to +60°C (-15°F to +140°F)
• Wind Survival : 160 km/hour
• Weight : 3.6 kg
• Single Piece Retail Box: 97 × 22 × 10 cm

• Frequency Range : 2400 – 2485 MHz
• Gain Max : 13.8 dBi
• Polarization : Dual Linear H + V
• Azimuth Beam Width -3 dB : H 75° / V 69°
• Elevation Beam Width -3 dB : H 14.5° / V 14°
• Azimuth Beam Width -6 dB : H 108° / V 100°
• Elevation Beam Width -6 dB : H 20° / V 19°
• Front-to-Back Ratio (Min) : 24 dB
• Cross Pol Isolation : H 15 dB / V 13.5 dB
• Impedance : 50 Ohm
• VSWR Max : 1,8
• VSWR Typical : 1,4
• Isolation Between Ports : 18 dB
