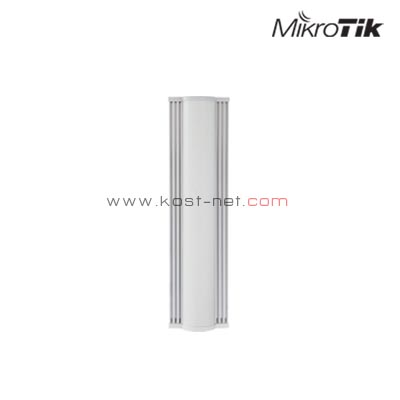

Mikrotik Sector CC 5Ghz-17

Product Description

Spesifikasi Teknis :

• Antenna Connection : 2x RP-SMA on integrated semi-flex pigtails
• Antenna Type : 5 GHz 17 dBi
• Enviromental : IP55
• Temperature : -26°C to +60°C (-15°F to +140°F)
• Wind Survival : 160 km/hour
• Weight : 3.7 kg
• Single Piece Retail Box: 97 × 22 × 10 cm

• Frequency Range : 5450 – 5850 MHz
• Gain Max : 17.5 dBi
• Gain Typical : 17 dBi
• Polarization : Dual Linear H + V
• Azimuth Beam Width -3 dB : H 75° / V 75°
• Elevation Beam Width -3 dB : H 7° / V 7°
• Azimuth Beam Width -6 dB : H 100° / V 100°
• Elevation Beam Width -6 dB : H 10° / V 10°
• Front-to-Back Ratio (Min) : 30 dB
• Cross Pol Isolation : H 20 dB / V 20 dB
• Impedance : 50 Ohm
• VSWR Max : 1,8
• VSWR Typical : 1,35
• Isolation Between Ports : 35 dB
