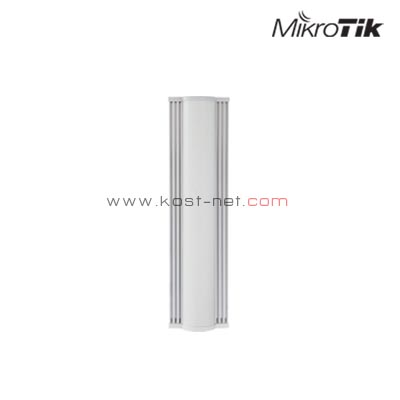

Mikrotik Sectoral Antenna Carier Class 5Ghz – 20db

Product Description

Spesifikasi Teknis :

• Antenna Connection : 2x RP-SMA on integrated semi-flex pigtails
• Antenna Type : 5 GHz 20 dBi
• Enviromental : IP55
• Temperature : -26°C to +60°C (-15°F to +140°F)
• Wind Survival : 160 km/hour
• Weight : 4 kg
• Single Piece Retail Box: 115 × 22 × 10 cm

• Frequency Range : 5450 – 5850 MHz
• Gain Max : 19.7 dBi
• Polarization : Dual Linear H + V
• Azimuth Beam Width -3 dB : H 74° / V 74°
• Elevation Beam Width -3 dB : H 4° / V 4°
• Azimuth Beam Width -6 dB : H 96° / V 100°
• Elevation Beam Width -6 dB : H 5° / V 5°
• Front-to-Back Ratio (Min) : 29 dB
• Cross Pol Isolation : H 21 dB / V 21 dB
• Impedance : 50 Ohm
• VSWR Max : 1,8
• VSWR Typical : 1,35
• Isolation Between Ports : 27 dB
