Product Description

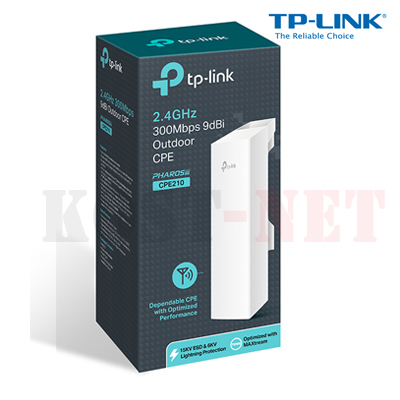

Highlights TP-LINK CPE210 2.4GHz 300Mbps Antenna MIMO 9dBi Outdoor CPE
- Built-in 9dBi 2×2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 27dBm/500mw
- System-level optimizations for more than 5km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
Enterprise Hardware Design
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).
| HARDWARE FEATURES | |
| Processor | Qualcomm Atheros 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |
| Interface | 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) |
| 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE | |
| Passthrough) | |
| 1 Grounding Terminal | |
| 1 Reset Button | |
| Dimensions (W X D X H) | 224 x 79 x 60 mm |
| Antenna Type | Built-in 9dBi 2×2 Dual-polarized Directional Antenna |
| Beam Width: 65° (H-Plane) / 35° (E-Plane) | |
| Note: For more details, please refer to datasheet | |
| Protection | 15KV ESD Protection |
| 6000V Lightning Protection | |
| Power Consumption | 10.5 Watts Max |
| Power Supply | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) |
| Voltage range: 16-27VDC | |
| Enclosure | Outdoor ASA stabilized plastic material |
| IPX5 waterproof Certification | |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11b/g/n (with Pharos MAXtream disabled) |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds | Up to 300Mbps (40MHz,Dynamic) |
| Up to 144.4Mbps (20MHz,Dynamic) | |
| Up to 72.2Mbps (10MHz,Dynamic) | |
| Up to 36.1Mbps (5MHz,Dynamic) | |
| Frequency | 2.4~2.483GHz |
| Reception Sensitivity | • 802.11b: |
| 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm | |
| • 802.11g: | |
| 54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm | |
| • 802.11n: | |
| MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm, | |
| MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm, | |
| MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm, | |
| MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm, | |
| MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm | |
| Transmission Power | 27dBm/500mw (Adjustable power by 1dBm) |
