Product Description

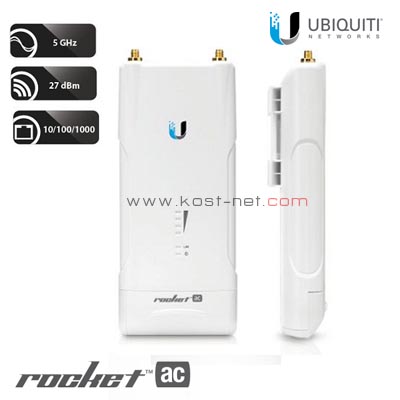

| Rocket5ac PtP | |
| Dimensions | 198.5 x 86.4 x 44.1 mm (7.82 x 3.40 x 1.74″) |
| Weight | 295 g (10.41 oz) |
| Operating Frequency Worldwide | 5470 – 5875 MHz |
| USA | 5725 – 5850 MHz |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| RF Connectors | (2) RP-SMA (Waterproof) |
| LEDs | Power, LAN, (4) Signal Strength |
| Enclosure Outdoor | UV Stabilized Plastic |
| Max. Power Consumption | 8.5W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method Passive | PoE (Pairs 4, 5+; 7, 8 Return) |
| Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| ESD/EMP Protection | ± 24KV Contact / Air for Ethernet |
| Shock and Vibrations | ETSI300-019-1.4 CE, FCC, IC |
| Model Comparison | R5AC-Lite | R5AC-PTP |
| Frequency | Full-Band 5 GHz | Mid-Band 5 GHz |
| Throughput | 500+ Mbps (Max. 80 MHz) | 500+ Mbps (Max. 80 MHz) |
| Ports | (1) 10/100/1000 Ethernet | (1) 10/100/1000 Ethernet |
| Link Type | PtP, PtMP* | PtP, PtMP* |
| airPrism™ Technology | No | Yes |
