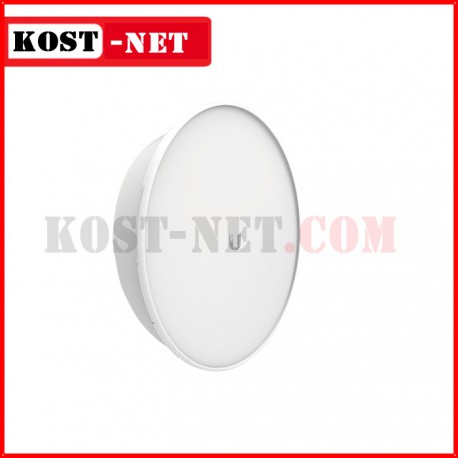

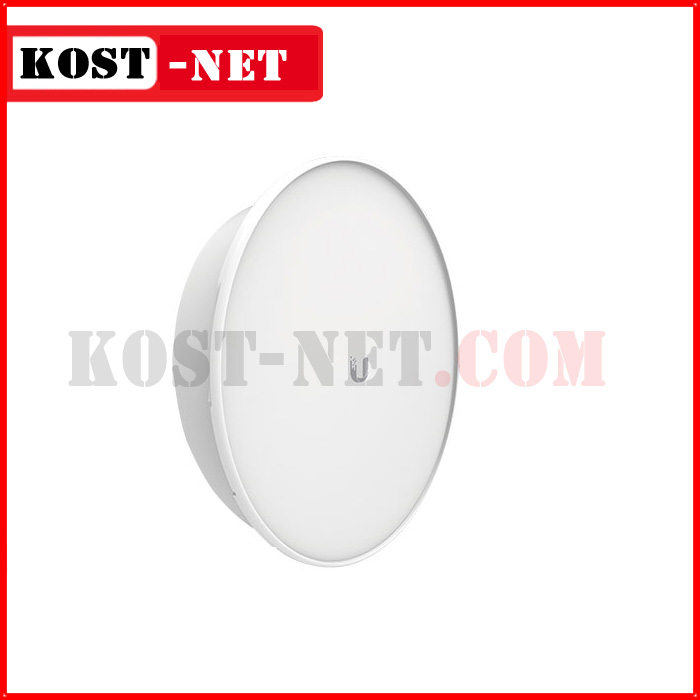

Ubiquiti PBE-5AC-ISO-GEN2

Product Description

Product Specifications

• Dimensions: 459 x 459 x 261 mm (18.07 x 18.07 x 10.28″)
• Weight (Mount Included): 7.10 lbs
• Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
• Power Method: Passive PoE (Pairs 4,5+; 7, 8 Return)
• Supported Voltage Range: 20 – 26VDC
• Gain: 25 dBi
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Process Specs: MIPS 74Kc
• Memory: 64 MB
• LEDs: Power, Ethernet, (4) Signal Strength
• Channel Sizes: PtP Mode: 10/20/30/40/50/60/80 MHz
• Channel Size:PtMP Mode: 10/20/30/40 MHz
• Mounting: Pole-Mounting Kit (Included)
• Wind Loading: 559 N @ 200 km/h (125.7 lbf @ 125 mph)
• Wind Survitability: 200 km/h (125 mph)
• ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
• Operating Temperature: -40 to 70° C (-40 to 158° F)
• Operating Humidity: 5 to 95% Noncondensing
• RoHS Compliance: Yes
• Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
• Vibration Test: IEC 68-2-6
• Temperature Shock Test: IEC 68-2-14
• UV Test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
• Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
• Certifications: CE, FCC, IC
• Management Radio (MHz) 2412 – 2462
• Max. Power Consumption: 8.5 W
• Operating Frequency: Worldwide 5150 – 5875 MHz
